Setting up DDoSX^®, CDN and WAF using SafeDNS¶

1) Prepare your domain¶

The first step to setting up DDoSX^® via SafeDNS is to prepare and check your domain before enabling DDoSX^® protection.

Before setting up a SafeDNS domain in DDoSX^®, double-check that your domain is set up correctly and working as expected through SafeDNS. Documentation on how to setup SafeDNS can be found in our SafeDNS Documentation should you assistance.

You must move all records associated with the domains (including sub-domains) you wish to protect, including SMTP, MX, mail, etc. to SafeDNS.

Once you have done this, point your domains to the UKFast name servers, which are:

- ns0.ukfast.net
- ns1.ukfast.net

You’ll need to do this through whichever domain registrar you use to manage your domains (which may not be UKFast). If you don’t know who your domain registrar is you can do a ‘WHOIS’ lookup on websites such as https://whois.icann.org/

The name server change may take up to 48 hours to propagate across the world. A good tool to check this is https://www.whatsmydns.net/

2) Connect your domain¶

• Login to MyUKFast and head to DDoSX Protection in the navigation menu.

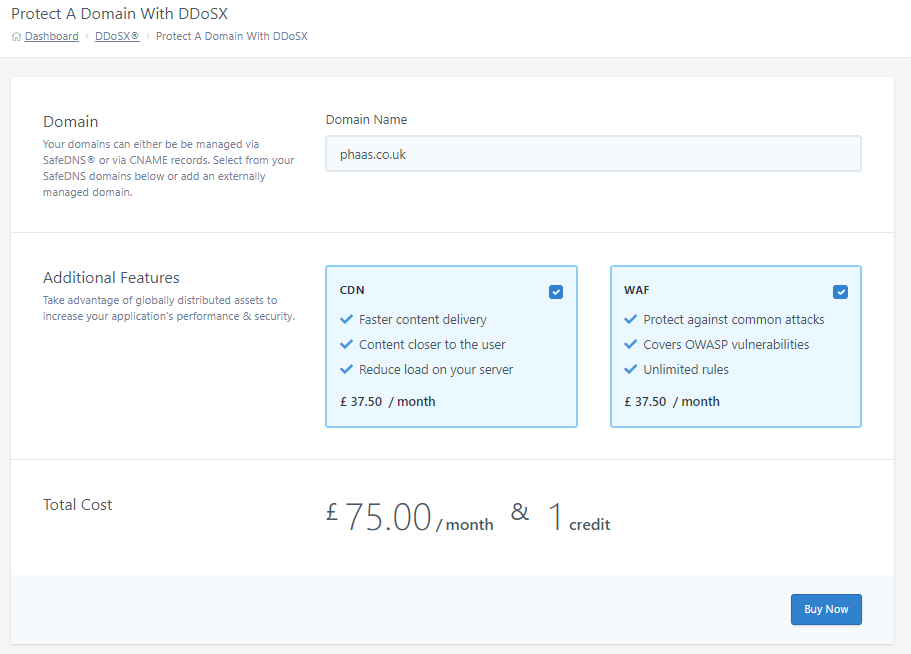

• Click on Protect A Domain button to start adding your domain.

• Enter the domain that you want to protect in the ‘Domain Name’ text box

• Select any additional features you’d like to add to this domain such as CDN or WAF by clicking the checkbox next to your chosen features.

• Double-check your domain and selected additional features and then press ‘Buy Now’

• Click Complete Transaction on the next page to complete the payment process. (You won’t have to complete this step if you have already ordered DDoSX^®, WAF or CDN via your UKFast account manager - Any existing credits will be consumed first).

CLI

ans ddosx domain create mydomain.example --name "mydomain.example"

3) Configure Domain¶

Once a new domain has been added to DDoSX^®, you will automatically be taken to the configuration page for that domain.

Setting up Records

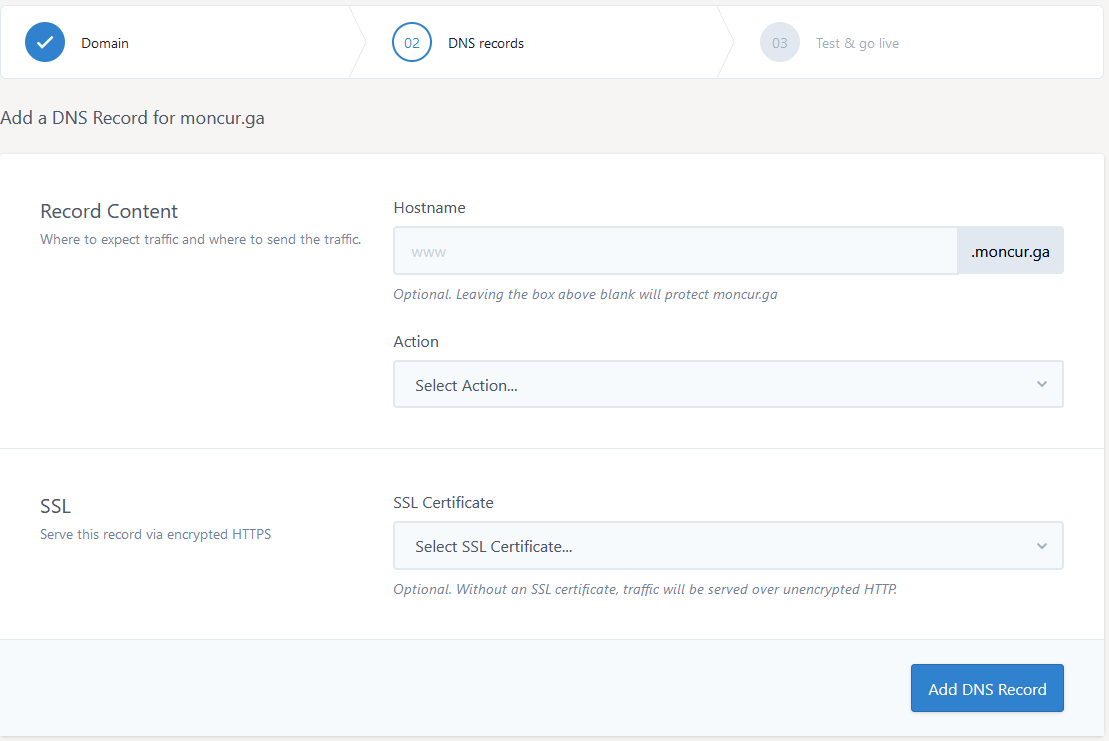

Click on Protect an A record and fill in the details where Hostname is the subdomain you wish to protect or you can leave this blank to protect the apex record.

Select an Action between Create new DNS record or Stage new DNS record. The first option will add the record on DDoSX and switch the DNS to DDoSX^®, and the second option will add the record, however the DNS will continue to point to the IP entered in New IP Address. For both actions the IP entered in New IP Address is the IP where your website is hosted or perhaps a load balancer VIP.

SSL certificate you can either choose Select SSL Certificate... to select an SSL you have in MyUKFast. Add SSL Certificate gives you the option to grab an external SSL and upload it to DDoSX^®. Finally if you don’t select an SSL certificate you can bring the site live without one just by clicking on Add DNS Record

Alternatively, navigate to the main DDoSX^® page on via the navigation bar on the left, click on the domain you want to configure, and then and click Configure tab.

First, use the Add Record button to configure your root and subdomains’ origin IP address. This will be the IP address that the request is forwarded to after being routed through DDoSX^®. This is usually your web server or load balancer’s external IP address.

You can add multiple subdomains at once via the Add Record button. Once you’re happy with your configure, press the Confirm button

The origin IP address of any of your subdomains (Including your root domain) can be changed by editing the IP in the text box shown under Origin IP for the specific record.

CLI

ans safedns record list mydomain.example #Use this to retrieve the safedns id
ans ddosx domain record create mydomain.example --name "mydomain.example" --safedns-record-id "123456" --content "1.2.3.4" --type "A"

Adding SSL Certificates

Before pressing the Apply Changes button, we can add any required SSL certificates to our domains.

To add an SSL certificate, click the SSL Tab. Any existing SSL certificates or SSL certificates purchased through UKFast for this domain should show up here.

If the required SSL certificate for the domain does not show up in here, we can add it by pressing the Add SSL button.

Enter your SSL’s Private Key, Certificate, any CA/Chain certificates (Optional) and a name for this SSL. Press the Create an SSL button to add your SSL to DDoSX^®.

At this point, you should be able to go back into the DNS Records tab and select the SSL you want to apply via the SSL dropdown for each record. Only SSLs that are valid for the configured subdomain will show in the dropdown. For example, an SSL for only www.ukfast.co.uk and ukfast.co.uk will NOT show in the dropdown for portal.ans.co.uk. Wildcard SSL certificates should show for all applicable subdomains.

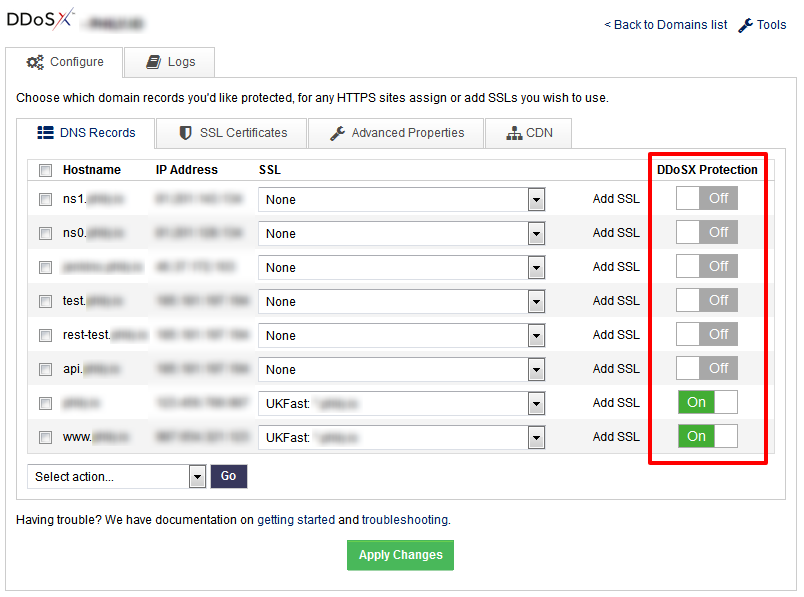

Ensure that the DDoSX Protection toggle switch is enabled for all the domains you want to enable DDoSX^® for. This will NOT put DDoSX^® live just yet, toggling this switch will only enable the domain within DDoSX^®.

CLI

ans ddosx ssl create --friendly-name "something to identify the ssl" --key-file "/path/to/priv.key" --certificate-file "/path/to/cert.pem" --ca-bundle-file "/path/to/ca.pem"

Finally, click Apply Changes and your domain will now be set up on the UKFast DDoSX^® network, and configured appropriately. (You should allow up to 10 minutes for the changes to be fully applied)

CLI

ans ddosx ssl list #Use this to retrieve the ID of the SSL (all the b's below)
ans ddosx domain record list mydomain.example #Use this to retrieve the ID of the record (all the a's below)
ans ddosx domain record update mydomain.example aaaaaaaa-aaaa-aaaa-aaaa-aaaaaaaaaaaa --ssl-id "bbbbbbbb-bbbb-bbbb-bbbb-bbbbbbbbbbbbb"
ans ddosx domain deploy mydomain.example

4) Configure Additional Features¶

You now have the option to configure and additional DDoSX^® features such as CDN and WAF before testing and putting your domain live.

The configuration of CDN and WAF can be quite complex, so each has its own documentation.

CDN Documentation

WAF Documentation

Alternatively, you can skip the configuration of additional features for now and re-visit it after DDoSX^® has been verified as working and put live. To do this, continue to step 5.

5) Test domain and put live¶

Once you’ve connected your domain to the DDoSX^® network and configured your DNS records, you may wish to test that your website or application will work correctly before changing your live DNS routing. This can be done by modifying your local hosts file to look for the DDoSX^® “Assigned IPv4” address for your domain.

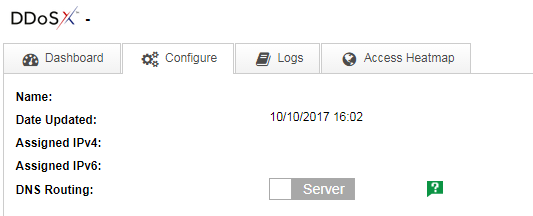

You will see that initially your DNS Routing is shown as “Server”, as per below.

Locate the hosts file on your computer. On Windows, you’ll find it in C:\Windows\System32\drivers\etc.

Open the hosts file using Notepad or another plain text editor (you may need administrator rights to make changes), and insert a line for each domain you wish to test, that includes the domain and the Assigned IPv4 address from DDoSX^®; for example:

185.156.64.0 mydomain.co.uk
185.156.64.0 www.mydomain.co.uk
185.156.64.0 blog.mydomain.co.uk

On Linux and macOS you can open and edit the hosts file in a terminal window using a command such as

sudo nano /private/etc/hosts

This article contains more detailed instructions on modifying the hosts file on macOS, Linux, and different versions of Windows.

Once you’ve added all the domains you need to test to your hosts file, save the changes. Then open a web browser and try browsing to your domain. Your local hosts file will route the request directly to the DDoSX^® IP address so you’ll be able to see exactly how your site will perform when you change your DNS records.

If you’re happy with how your site performs, you can switch the DNS Routing for your domain to “DDoSX^®”. Note that it may take up to 48 hours for DNS changes to propagate across the internet (as with any such changes), and before your domain is fully protected.

Once DNS propagation had concluded, your domain will be fully set up with DDoSX^® protection.

CLI

ans ddosx domain dns activate mydomain.example

Further Configuration¶

You may wish to add further configuration on your origin server to work more closely with DDoSX^®. Some common configurations are documented below.

185.156.64.0/24
192.166.44.0/24
78.24.88.0/24
185.181.196.0/22

iptables --append INPUT --protocol tcp --src 185.156.64.0/24 --dport 80 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 192.166.44.0/24 --dport 80 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 78.24.88.0/24 --dport 80 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 185.181.196.0/22 --dport 80 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 185.156.64.0/24 --dport 443 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 192.166.44.0/24 --dport 443 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 78.24.88.0/24 --dport 443 --jump ACCEPT
iptables --append INPUT --protocol tcp --src 185.181.196.0/22 --dport 443 --jump ACCEPT
iptables --append INPUT --protocol tcp --dport 80 --jump DROP
iptables --append INPUT --protocol tcp --dport 443 --jump DROP

set_real_ip_from 185.156.64.0/24;
set_real_ip_from 192.166.44.0/24;
set_real_ip_from 78.24.88.0/24;
set_real_ip_from 2a02:21a8:1::/48;
set_real_ip_from 2a09:ba00:4::/48;
set_real_ip_from 2a09:b600:5::/48;
real_ip_header X-Forwarded-For;
real_ip_recursive on;

<IfModule remoteip_module>
    RemoteIPHeader X-Forwarded-For
    RemoteIPTrustedProxy 185.156.64.0/24
    RemoteIPTrustedProxy 192.166.44.0/24
    RemoteIPTrustedProxy 78.24.88.0/24
    RemoteIPTrustedProxy 2a02:21a8:1::/48
    RemoteIPTrustedProxy 2a09:ba00:4::/48
    RemoteIPTrustedProxy 2a09:b600:5::/48
</IfModule>
LogFormat "%a %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" ddosx

# You may already have a line like the following in your VirtualHost declaration,
# if so, change the last part (likely the word `combined`) to `ddosx` to use the
# above log format.
CustomLog /var/log/httpd/acmecorp.com/access.log ddosx

defaults
    #option forwardfor except 192.168.1.10
...

backend webservers
    mode http
    http-request set-header X-Forwarded-For %[req.hdr(DDOSX-Connecting-IP)]
    server web1 ...
