SSL Passthrough vs Offloading¶
There are two ways of handling your HTTPS traffic on a UKFast loadbalancer.
The first is passthrough which, as the name suggests, simply passes HTTPS traffic through to the backend server with no interaction from the loadbalancer. This is the simplest form of handling your HTTPS traffic and has the lowest overhead as it doesn’t require any decrypting of traffic on the loadbalancer, it’s all passed through fully encrypted.
This may all sound good, but if you don’t decrypt the traffic, no layer 7 actions can be carried out, which means no access rules, no redirects, no blocking and most importantly, no cookie based sticky sessions.
If your application doesn’t share sessions between servers, if a clients journey would be impacted by flip flopping between different servers in a server group (most sites manifest this as lost baskets) then it’s advisable to switch to using SSL offloading instead.
SSL offloading means that all HTTPS traffic is decrypted on the loadbalancer, any layer 7 actions are carried out on it and then it’s passed back to port 80 on the backend server as plain HTTP traffic. There main side effect of this is that your backend servers seem to be no longer receiving any HTTPS traffic. If you have any specific logic that detects HTTP traffic and attempts to redirect to HTTPS, you’ll need to check for the presence of a new header called X-Forwarded-Proto. This header is added when traffic goes through the offloading process, so if you find the X-Forwarded-Proto header set with content of https then you know that the traffic can essentially be treated as if it was HTTPS.
Switching between passthrough and offloading¶
Passthrough and Offloading are configured as different services when setting up your VIP. To switch an existing passthrough vip to an offloaded one, we need to head into the Virtual IP section of your loadbalancer:
We’re looking to add an offloaded service for 3.3.3.3, so hit Create Virtual IP.
With HTTPS service (with SSL offloading) selected from the Service drop down, you should see the following:
The SSL Certificate section is the only real departure from the previous Create VIP screen we saw in the quickstart.

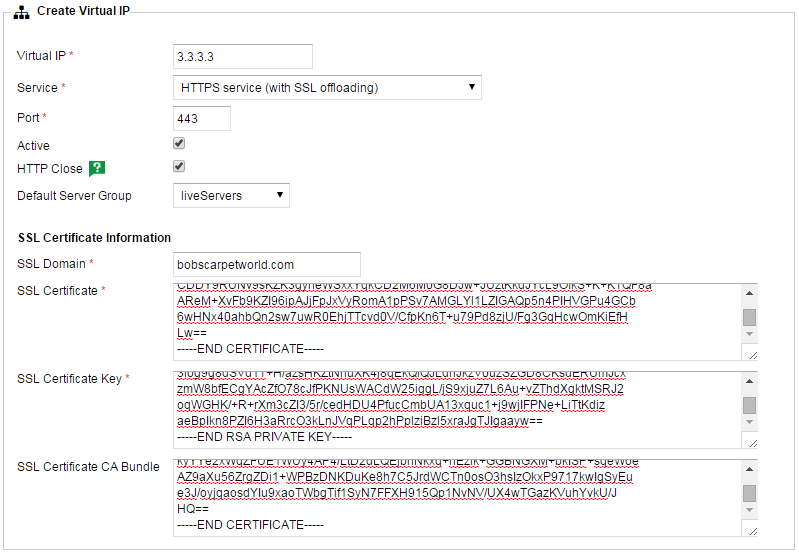

Fill in the relevant fields until it looks something like this:
Warning
Note that the Default Server Group selected is an HTTP one, not the HTTPS one we use in the passthrough VIP. As explained previously, this is because all traffic that goes through the offloading process will be decrypted and treated as HTTP by the backend servers.
With the offloading now created, we just need to disable the previous passthrough vip.
Head back to the Virtual IPs tab and edit your HTTPS service (no SSL offloading) vip. With this open, uncheck the Active box to deactivate this vip and press Update Virtual IP to save it.
You should now have this:
Hit Reload Load Balancer Config on the yellow banner at the top to put it all live and you should now be offloading traffic instead of passing it through.
As ever, if you have any questions or concerns about this process, please contact support.
