Listeners¶

Basic Configuration¶

When creating a new listener you will first need to give it a unique name. The default target group is where traffic from the listeners binds (see next section) will be sent to by default unless you override this behaviour with an access control rule. You can then choose whether you want the listener to be HTTP or TCP.

Binds¶

These are the combinations of Virtual IP and port that this listener will respond to, you can add multiple binds per listener. If you only have one Virtual IP assigned to a load balancer then this will automatically be filled into the VIP field. Otherwise, you will get a search box allowing you to select the correct VIP for that bind.

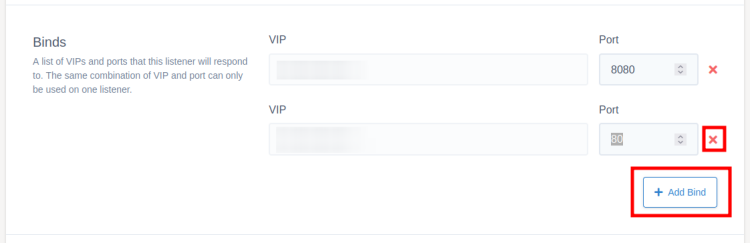

Each listener needs to have at least one bind and can have as many as needed. Click the “Add Bind” button to add a new VIP / Port combination and the red X to delete a bind.

Additional SSL Settings¶

These settings will not be shown for TCP listeners.

You can set this listener to enable HSTS for visitors, this means that the website will always need to have a valid SSL for users to access the website. If your SSL certificate is ever removed or expires, the user’s browser remembers that there should be an SSL certificate and stops the user from accessing the website. If you are going to enable this setting make sure you have an SSL certificate ready to use.

You can also enable “Redirect to HTTPS” which similar to HSTS will redirect non-HTTPS traffic to HTTPS ensuring the user’s data is encrypted between their computer and the server. However, unlike HSTS this isn’t enforced and you can disable this setting if needed in the future.

Advanced Options¶

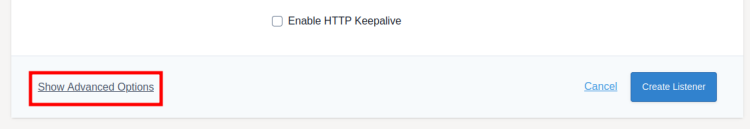

These settings have already been set to sensible defaults by UKFast. However, if you do need to make changes you can access these settings by pressing “Show Advanced Options” at the bottom left of the listener form. These settings aren’t shown for TCP listeners.

Minimum TLS Version:

Using the slider, you can change the minimum TLS version used by the listener. UKFast recommends v1.2 at this time. v1.0 and v1.1 are now deprecated and don’t meet PCI requirements if this is required by your business. v1.3 uses modern ciphers which means older browsers will not be able to connect to your servers.

Client Timeout:

Setting this will adjust the maximum amount of time for a client to acknowledge or send data to the load balancer. Leaving this input blank will mean the load balancer uses the current UKFast default value of 60 seconds.

Saving and Deploying¶

Once you’ve finished filling in the listener form, click Create Listener to add the listener to the load balancer. Once you’ve finished setting up all your listeners, make sure you deploy your changes.
